Cotton Pickers

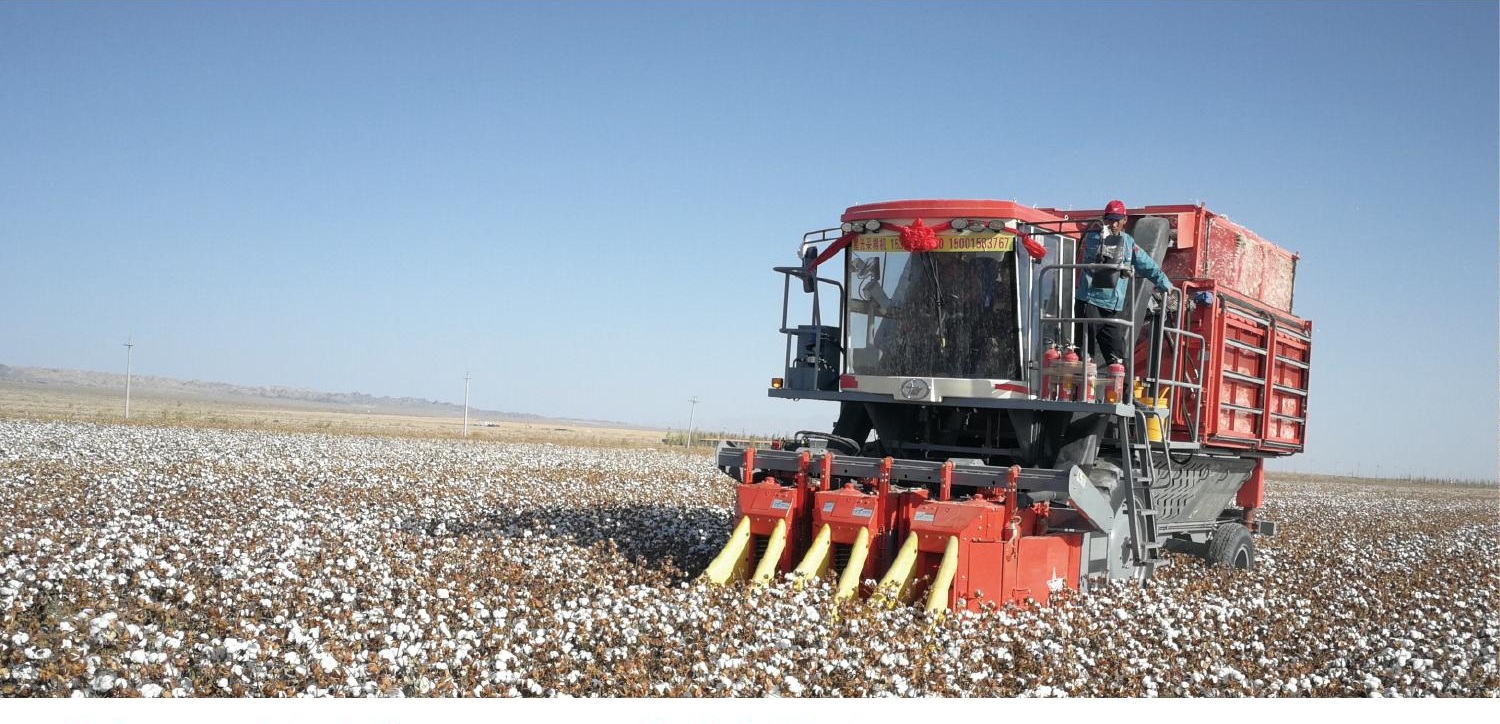

4MZ-3 Three-Row Cotton Picker
A three-row cotton picker with hydraulic drive, an enclosed cab and automatic/manual control.
KNOW YOUR EQUIPMENT
Technical overview.
A three-row cotton picker with hydraulic drive, an enclosed cab and automatic/manual control.
Key features
- Front and rear drum picking arrangement
- Touch-screen control and monitoring
- Adjustable row spacing
Technical specifications
| Picking rows | 3 |
|---|---|
| Dimensions | 8,690 × 2,450 × 4,050 mm |
| Weight | 13,000 kg |
| Rated power | 209 hp at 2,200 rpm |
| Engine model | QSB5.9-C210-30 |
| Engine displacement | 5.9 L |
| Cotton tank volume | 25 m³ |
| Fuel tank | 380 L |
Project and dealer enquiries
Request a quotation for your model, quantity and destination country. Price, availability, freight, lead time and destination requirements will be confirmed for your enquiry.
Manufacturer: Chongqing Smart Thinker Agricultural Machinery Co., Ltd.

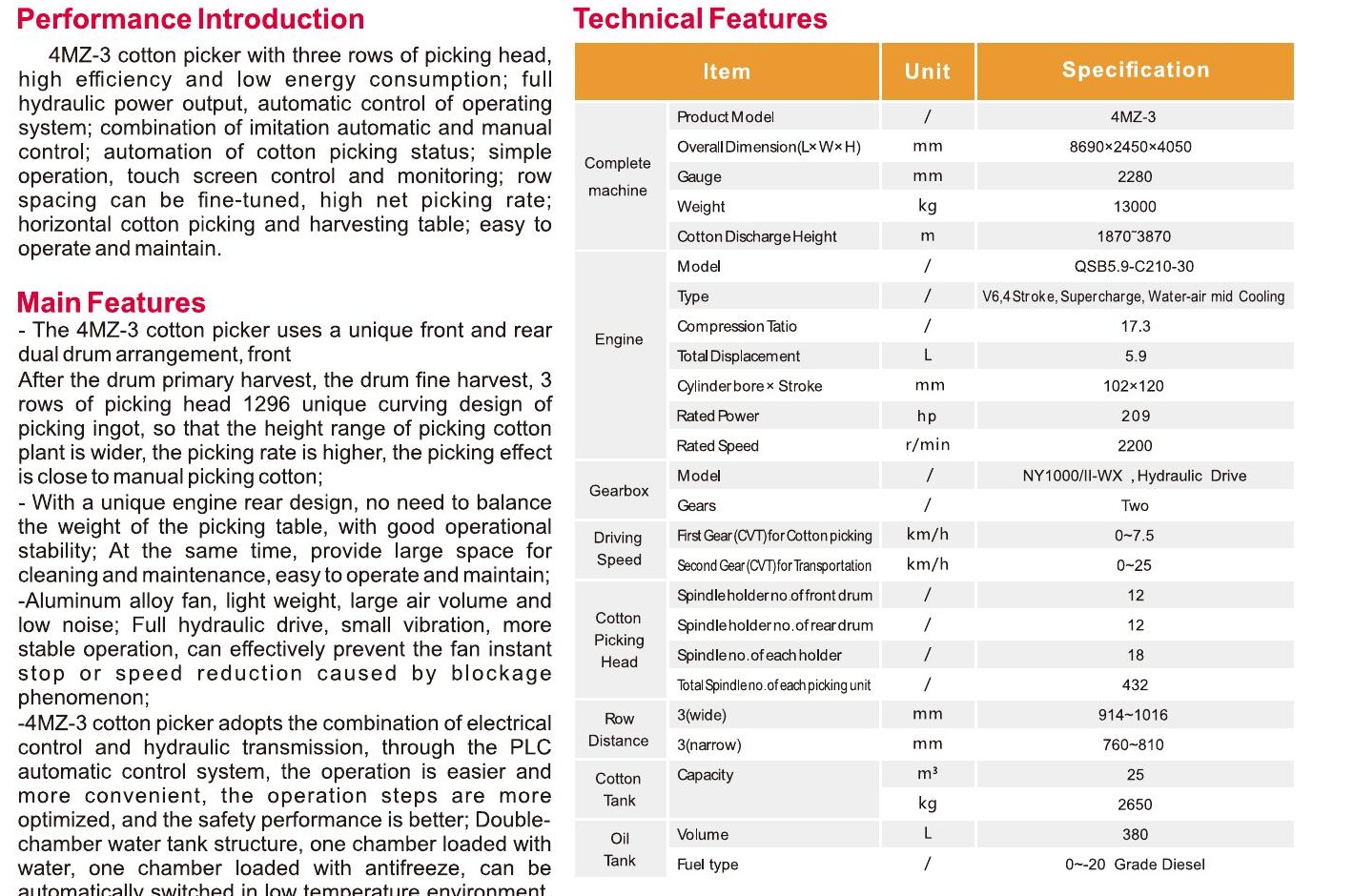

Specifications and photographs: manufacturer English brochure, printed page 17. Confirm the final configuration before ordering.
MANUFACTURER INFORMATION
A closer look.
Open the original catalog image to review the equipment and specification sheet.
