Square Balers

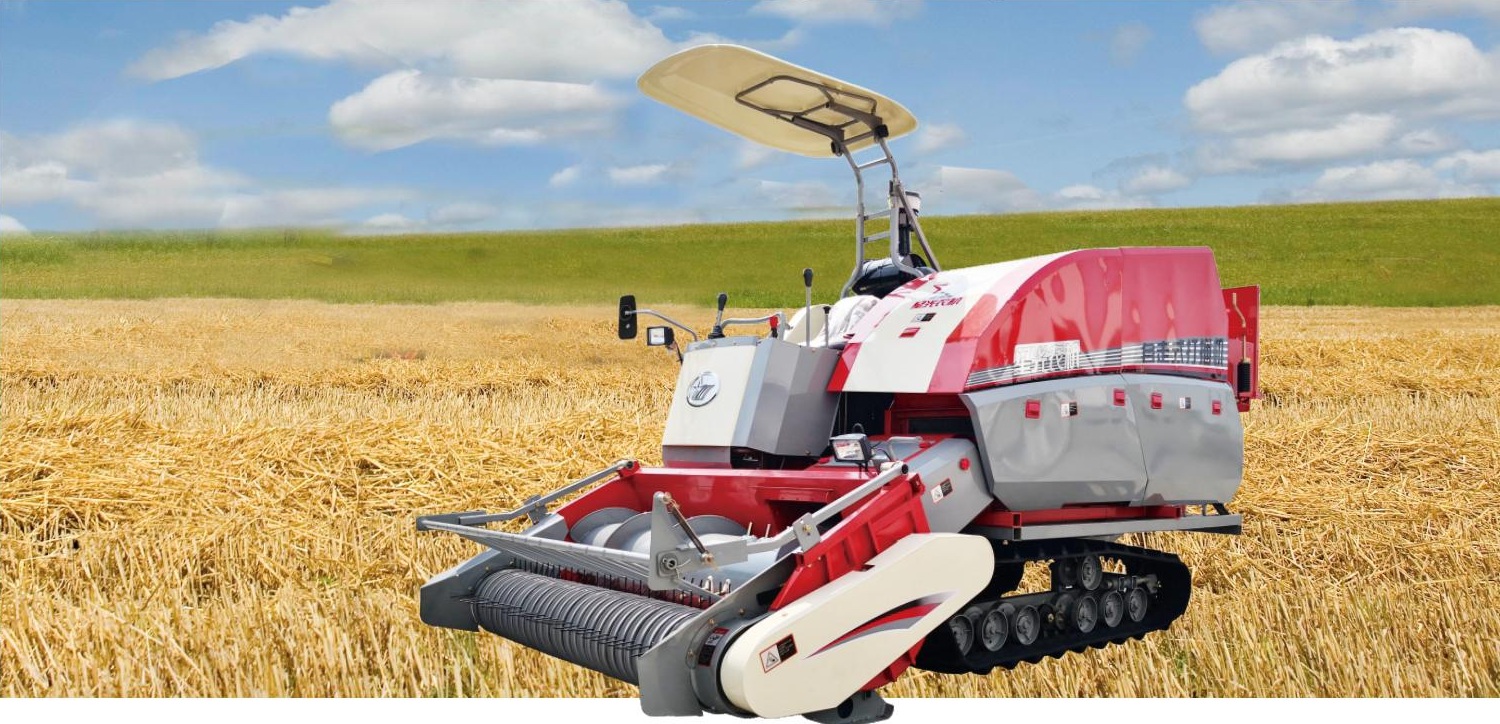

9YFL-1.9A Tracked Self-Propelled Square Baler
A tracked square baler integrating picking, conveying, feeding, compression and baling.
KNOW YOUR EQUIPMENT
Technical overview.
A tracked square baler integrating picking, conveying, feeding, compression and baling.
Key features
- HST and rubber-track system
- Bale collection device
- Rear-mounted engine
Technical specifications
| Rated engine power | 88 hp |
|---|---|
| Dimensions | 5,150 × 2,350 × 2,200 mm |
| Weight | 2,920 kg |
| Pickup width | 1,900 mm |
| Work efficiency | 1,100–1,680 kg/h |
| Bale cross-section | 360 × 460 mm |
| Bale length | 300–1,200 mm |
| Ground clearance | 240 mm |
Project and dealer enquiries
Request a quotation for your model, quantity and destination country. Price, availability, freight, lead time and destination requirements will be confirmed for your enquiry.
Manufacturer: Chongqing Smart Thinker Agricultural Machinery Co., Ltd.
Specifications and photographs: manufacturer English brochure, printed page 18. Confirm the final configuration before ordering.
MANUFACTURER INFORMATION
A closer look.

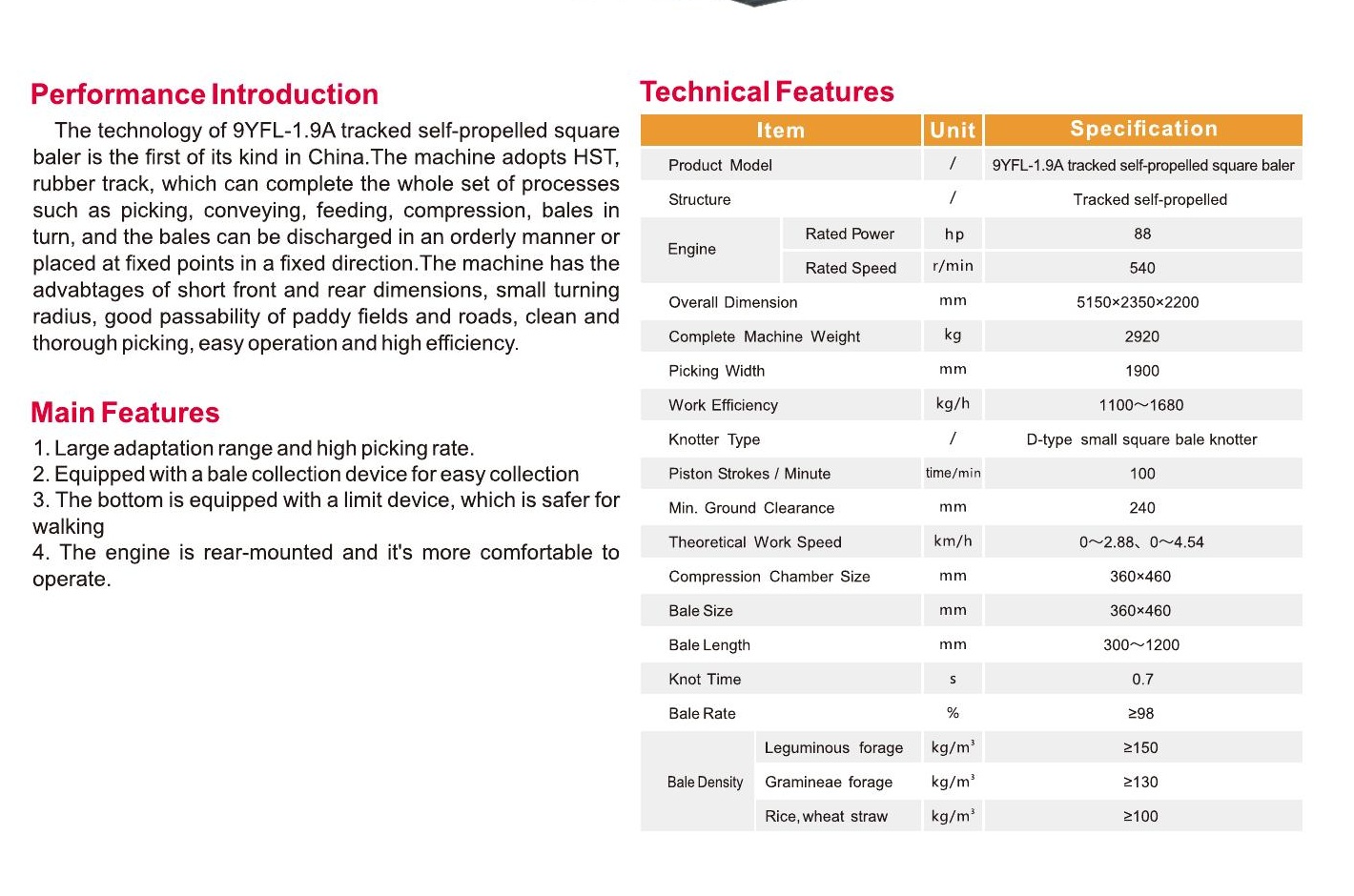

Open the original catalog image to review the equipment and specification sheet.
